- Wavelength: 1600-2400 nm
- Mode: Fiber
- Detector: Extended InGaAs (Uncooled)

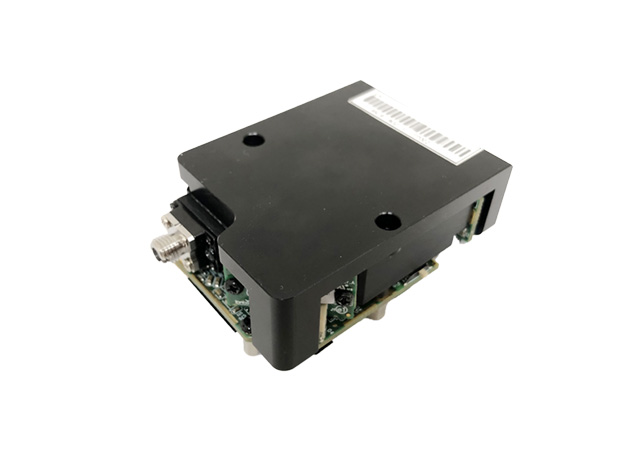

Inno Spectra NIR-M-F13 - 1600-2400 nm Fiber NIR Spectrometer
5.800,00 €
excl. 19% VAT plus shipping costs
Delivery time: up to 6 weeks
Description
Where to buy NIR-M-F13? You can buy the Inno Spectra NIR-M-F13 directly from Solid Scanner. Prices shown are ex-VAT; final costs (shipping/taxes) are calculated at checkout based on address.
Key Specs
- Wavelength: 1600-2400 nm
- Mode: Fiber
- Detector: Extended InGaAs (Uncooled)
Specifications
| Wavelength Range | 1600-2400 nm |
|---|---|
| Measurement Mode | Fiber |
| SNR | 3,000:1 @2200 nm |
| Detector | Extended InGaAs (Uncooled) |
| OS / SDK / API | Win GUI + SDK |
| Dimensions | 68.8mm * 48mm * 27.3mm |
| Weight | < 110 g |
| Operating temp., Humidity | 0 ~ 40 °C, RH Max. 85% |
| Power / Battery | Micro USB / UART / Li-ion battery (optional) |
| Fiber Optic Connector | SMA905 with key slot |
Warranty, Origin & Shipping
- Warranty: 12 months (B2B)
- Country of origin: China
- Shipping flat rates
- Payment: Credit card online; other methods via info@solidscanner.com
- Returns: B2B sales are not returnable. Contact us if there is an issue.
